By using advanced computer technology, modern electronic technology, communication technology and information processing technology, the functions of the substation secondary equipment (including relay protection, control, measurement, signal, fault recording, automatic device and remote device, etc.) are recombined and optimized. A comprehensive automation system that monitors, measures, controls and coordinates the operation of all equipment in a substation.Rigid frame combinations for suspension conductors, support conductors, or switchgear and other electrical equipment.
| No | Item | Data |
| 1 | Use | Rigid frame combinations for suspension conductors, support conductors,or switchgear and other electrical equipment |
| 2 | Material | Q235B/355B/420B/420C |
| 3 | Country of origin | Tianjin, China |
| 4 | Brand name | juding |
| 5 | Joint of Poles | Slip joint,flanged connected |
| 6 | Manufacturing standard | GB/T2694-2018 |
| 7 | Standard | SO19001:2015Products are processed in strict accordance with GB/T2694-2018,DL/T646-2012,YD/T757-2013 and other national current standards. |
| 8 | Length of per section | Within 13M once forming |
| 9 | Welding Standard | AWS(American Welding Society)D 1.1 |
| 10 | Production Process | Raw material test-cutting-bending-welding-dimension verify-flange 10 welding-hole drilling-sample assemble-surface clean-galvanization or power coating/painting-recalibration-packages |
| 11 | Packages | according to client's requirement |
| 12 | Life Period | More than 30 years,it is according to installing environment |

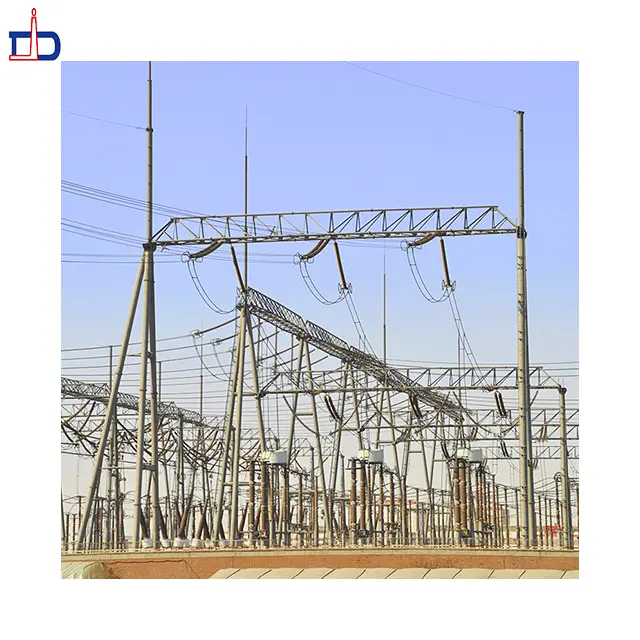

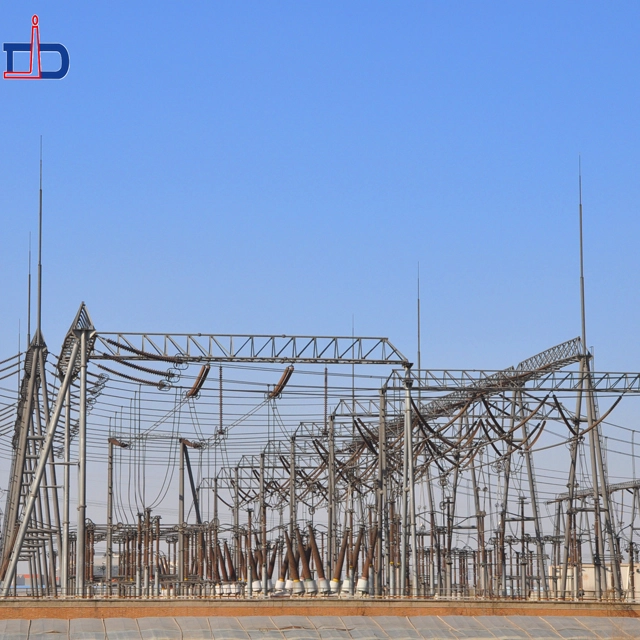

The support structure of substation incoming line, outgoing line and internal conductor.
Substation can be divided into: hub substation, terminal substation; Step-up substation, step-down substation; Power system substation, industrial and mining substation, railway substation (27.5KV, 50HZ); 1000KV,750KV,500KV,330KV,220KV,110KV,66KV,35KV,10KV,6.3KV and other voltage levels of substations; 10KV substation; Box type substation.
Substation framework is the support structure of incoming, outgoing and internal wires of substation.
