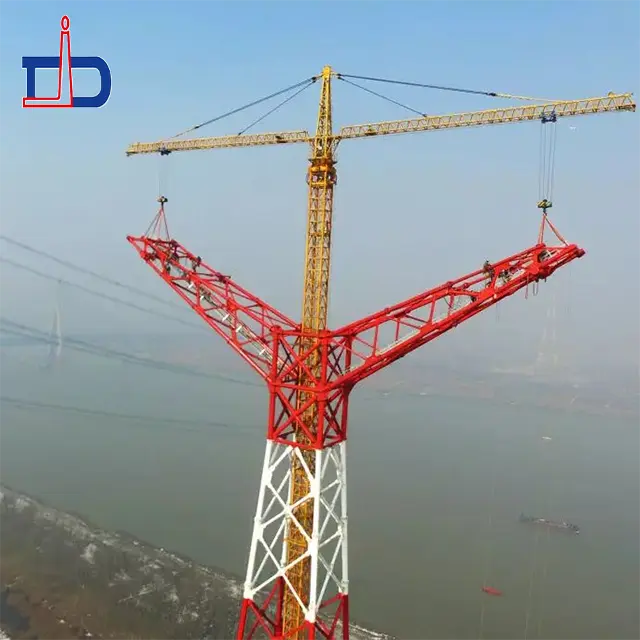

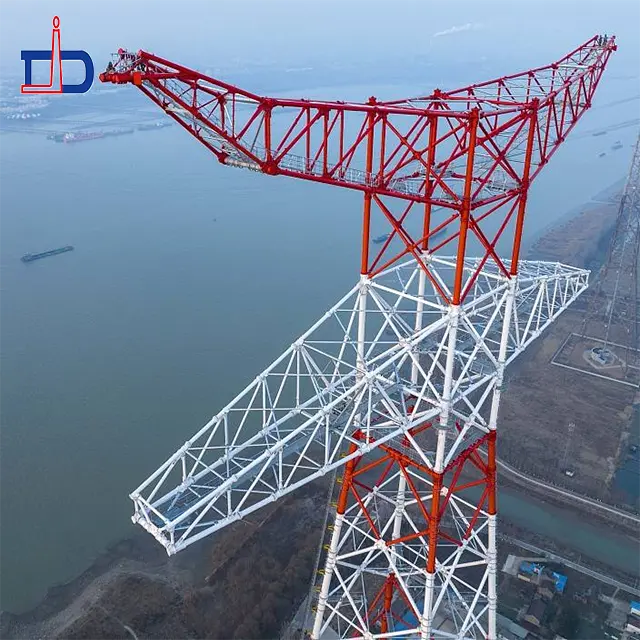

The 1000V Electric Angle Tower is a high-performance structure optimized for the transmission of electrical power at voltages up to 1000 volts. Constructed from superior-grade materials, it offers unmatched durability and strength. Its angular design not only contributes to its aesthetic appeal but also significantly enhances its resistance to environmental stresses, ensuring a stable and secure conduit for electrical distribution. Ideal for both urban and rural settings, this tower is engineered to facilitate efficient power delivery with minimal maintenance, making it a valuable addition to any electrical network.
| No | Item | Data |
| 1 | Height | From 10M-100M or according to client's requirement |
| 2 | Suit for | Electric Power Transmission and Distribution |
| 3 | Shape | Polygonal or Conical |
| 4 | Material | Normally Q235B/355B/420B/420C...Yeild Strength≥235MPa |
| 5 | Q355B,Yeild Strength≥345MPa | |
| 6 | As well as Hot Rolled coil from ASTM572,GR65,GR50,SS400 | |
| 7 | Power Capacity | 10kV to 1000kV |
| 8 | Tolerance of the dimension | According to client's requirement |
| 9 | Surface treatment | Hot-dip-any other standard by client's requirement |
| 10 | Joint of Poles | Slip joint,flanged connected |
| 11 | Standard | SOI9001:2015, Products are processed in strict accordance with GB/T2694-2018,DL/T646-2012,YD/T757-2013 and other national standards |
| 12 | Length of per section | Within 13M once forming |
| 13 | Welding Standard | AWS(American Welding Society)D 1.1 |
| 14 | Production Process | Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating/painting-recalibration-packages |
| 15 | Packages | according to client's requirement |
| 16 | Life Period | lifetime warranty,it is according to installing environment |
High voltage adaptability: 1000V power angle steel tower is designed for high voltage transmission lines, can withstand up to 1000 volts, this high voltage adaptability makes it able to transmit power over a wide range, to meet the needs of long-distance power transmission, and improve the transmission efficiency of the power system.
Compact structure: For the demand of 1000V power transmission, this kind of angle steel tower pays more attention to the compactness of the structure in the design, in order to reduce the air resistance and improve its resistance to bad weather. The compact design not only optimizes the use of materials and reduces costs, but also reduces the occupation of land resources.
Safety and Security Measures: When dealing with high voltage transmission, the 1000V Power Angle Tower has taken additional safety and security measures, such as the use of insulating coatings and the installation of additional lightning protection facilities, to ensure the safety of the tower and the surrounding area. These measures effectively reduce the safety risk in high voltage operation and protect the equipment and personnel.
Optimized electromagnetic field management: Considering the electromagnetic impact that high voltage transmission may have on the surrounding environment, the 1000V power angle tower is designed with optimized wiring and configuration schemes to effectively manage and control the distribution of electromagnetic fields. This optimization reduces interference with the surrounding environment and communication systems and improves the environmental friendliness of power transmission.
